TENBULL P4.81 P3.91 P2.064 P1.875 creative soft led screen RGB colorful professional led display
Quick detail
1.Pixel pitch:4.81 3.91 2.064 1.875
2.IC:FM6353
3.Pixel density:43264dot/m2
4.Brightness of white balance:≥5000cd/m2
5.Temperature:storage:-35℃～+85℃ work:-20℃～+50℃
6.Pixel per cabinet:104*208
Product detail
1.This LED display is a new indoor and outdoor dual-use type, which is easy to install, maintain and use in a large area.
2.It has excellent production technology, customized product design of private mold, and the latest anti-collision plate technology.
3.This product is a brand new indoor and outdoor dual-use type, with light, transparent and thin structural design, easy to install, maintain and use in a large area.
4.This product has an inclined drainage design and a power box design with insulated PCB board, which can fully adapt to the harsh outdoor climate.
5.This display screen has the characteristics of strong luminous brightness. The display content is still clearly visible when the sun directly shines on the screen surface within the visible distance.
6.Silent design, eliminate noise, reduce power consumption, save energy and power.
P4.81 PARAMETER
| MODULE | Iterm | parameter |
| | Product model | P4.81-13S |
| | Module size | 250mm*250mm |
| | Pixel pitch | 4.81mm |
| | Pixel density | 43264dot/m2 |
| | Pixel configuration | 1R1G1B |
| | LED type | SMD1921 |
| | IC | FM6353 |
| | Pixel resolution | 52dots(W)*52dots(H) |
| | Max Power consumpion | 60W |
| | Module weight | 1.2kg |
| | Drive type | Constant drive |
| | Scan mode | 1/13 scan |
| LED cabinet | cabinet size | 500mm*1000mm |
| | Module quantity | 8pcs |
| | Power supply | 5V/60A |
| | Pixel per cabinet | 104*208 |
| | Brightness of white balance | ≥5000cd/m2 |
| | Best viewing distance | 4M～50M |
| | The best perspective | 160°(W) 120°(H) |
| | Temperature | storage:-35℃～+85℃ work:-20℃～+50℃ |
| | Opration humidity | 10%-95% |
| | Thickness | 85mm |
power | Working voltage | AC220V±10% |
| | Average Power | 400W/S |
| | Max.Power consumption | ≤800W/S |
| | Current | ≤20mA(single LED) |
Control syste | CPU | Pentium4 or above |
| | Operation system | WIN98/2000/NT/XP |
| | Control method | Synchronization |
Main technical parameter | Driving device | Constant currentdriver IC |
| | Refresh frequency | ≥3840HZ |
| | Grey scale/colors | 256levels of each color(RGB)/16.7M colors |
| | MTBF | ≥9000hours |
| | Power switch | Automatic switch |
| | Display Mode | 800*600/1024*768 |

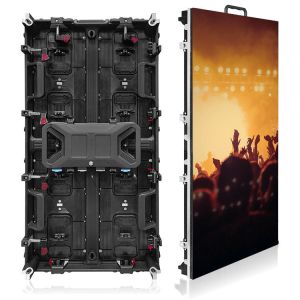

Product photo
FAQ
Q1.What is the payment method?
A:As for the payment method, we generally adopt T/T delivery, or we can make different plans according to different situations.
Q2.Can I order a sample?
A:Yes,We welcome customers to order samples to check our product quality of our products and service.
Q3.What about your quality?
A:The quality of our display is excellent. We use the materials of high quality suppliers in the world,strictly control the production process, and pass the multiple quality inspection to ensure that every product is qualified.
Product Tags:
|
|
Colorful Soft Professional LED Display Creative P4.81 P3.91 RGB Images
|
