super thin led screen TENBULL P4.81 P3.91 P2.064 P1.875 full color 4.81mm led screen
Quick detail
1.Pixel pitch:4.81mm
2.LED type:SMD1921
3.Refresh frequency:≥3840HZ
4.Module size:250mm*250mm
5.cabinet size:500mm*500mm/500mm*1000mm
Product detail
1.With high resolution, this LED display screen can perfectly display delicate colors and high-definition image quality.
2.The feature of easy maintenance has brought great popularity to the product. We adopt modular design, the effect of display image is stable, the installation and maintenance are simpler, and it can be repaired with electricity.
3.This LED display screen has good flatness, consistent ink color of the mask, high contrast of the entire display screen, and soft and smooth feel.
4.It has the characteristics of insulation, moisture-proof, anti leakage, shockproof, anti-corrosion, anti-aging, corona resistance, high temperature resistance, etc.
5.High-quality material selection, using imported luminescent materials, high-quality LED display special IC chip design, with small package, high brightness, large angle, antistatic and other characteristics; Noiseless high-power power supply; The whole screen is fanless design, no noise, low power consumption, and can be used in the temperature range of 0°C~55°C.
6.Silent design, no need to install empty fans, eliminate noise, reduce power consumption, save energy and save power.
7.The use of conformal paint better protects the circuit board and its related equipment from the erosion of the environment; It has good high and low temperature resistance; After curing, it becomes a transparent protective film, which has superior insulation, moisture-proof, leakage-proof, shockproof, dust-proof, anti-corrosion, anti-aging, corona resistance and other properties, and better protects the circuit board
P4.81 PARAMETER
| MODULE | Iterm | parameter |
| | Product model | P4.81-13S |
| | Module size | 250mm*250mm |
| | Pixel pitch | 4.81mm |
| | Pixel density | 43264dot/m2 |
| | Pixel configuration | 1R1G1B |
| | LED type | SMD1921 |
| | IC | FM6353 |
| | Pixel resolution | 52dots(W)*52dots(H) |
| | Max Power consumpion | 60W |
| | Module weight | 1.2kg |
| | Drive type | Constant drive |
| | Scan mode | 1/13 scan |
| LED cabinet | cabinet size | 500mm*1000mm |
| | Module quantity | 8pcs |
| | Power supply | 5V/60A |
| | Pixel per cabinet | 104*208 |
| | Brightness of white balance | ≥5000cd/m2 |
| | Best viewing distance | 4M～50M |
| | The best perspective | 160°(W) 120°(H) |
| | Temperature | storage:-35℃～+85℃ work:-20℃～+50℃ |
| | Opration humidity | 10%-95% |
| | Thickness | 85mm |
| power | Working voltage | AC220V±10% |
| | Average Power | 400W/S |
| | Max.Power consumption | ≤800W/S |
| | Current | ≤20mA(single LED) |
| Control syste | CPU | Pentium4 or above |
| | Operation system | WIN98/2000/NT/XP |
| | Control method | Synchronization |
| Main technical parameter | Driving device | Constant currentdriver IC |
| | Refresh frequency | ≥3840HZ |
| | Grey scale/colors | 256levels of each color(RGB)/16.7M colors |
| | MTBF | ≥9000hours |
| | Power switch | Automatic switch |
| | Display Mode | 800*600/1024*768 |

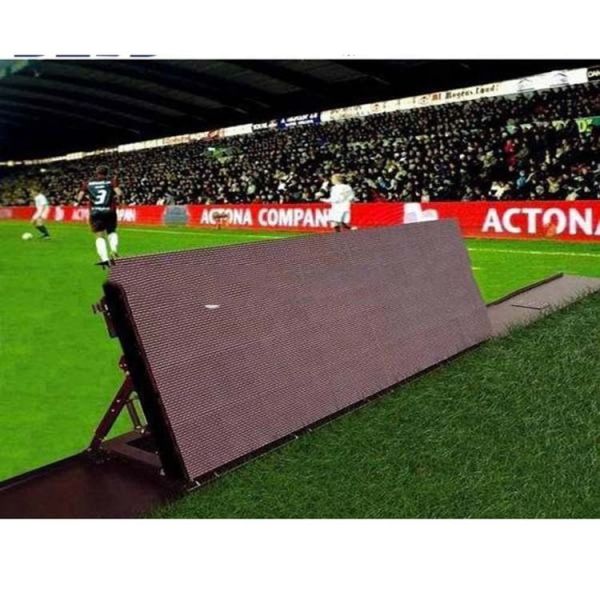

Product photo
FAQ
Q1.How to deal with the faulty?
A:Firstly, Our products are produced in a strict quality control system and the defective rate will be less than 0.2%; Secondly, during the guarantee period, we will send a new module with new order for a small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation.
Q2.What technical supports can you offer??
A:We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory. we can send an engineer team to the country of the customer to instruct the installation.
Q3.What kind of display do we provide?
A:We have indoor/outdoor/mobile LED /rental LED display /LED stage/ Advertising LED display for you choose.
Q4:I want to know more?
Contact us right now is the fastest way...
